Traction pipe diameter: φ315-630mm

Effective clamping length: 3200mm

Clamping method: upper three claws grab gas -type under three grasping chains

Transmission reducer: XLD-11KW

Clamp the reducer: XWD-3KW

Traction speed: 0.1-1/min

Dimensions (length, width and height): 4800mmx2600mmx2600mm


Product Details:

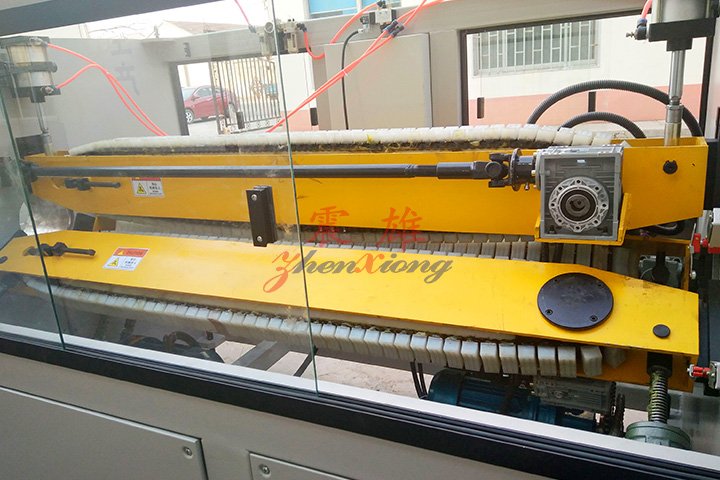

Track Tractor:

The tracked plastic traction machine adopts a bipolar traction method to regulate the frequency frequency. Mainly supporting plastic extruders.

For plastic pipes, alien profiles, hoses, etc., the scope of applications is wide and convenient.


Technical parameters:

Model

SJQ125/3

SJQ250/4

SJQ450/4

SJQ630/6

SJQ800/6

Pull-in range /mm

∅32-∅125

∅63-∅250

∅110-∅450

∅250-∅630

∅315-∅800

A few miles into the foot

2

3

4

6

6

Contact length mm

1200

1400

1600

1600

2000

Pull N

7500

10000

20000

30000

40000

Traction velocity, m / min

0.6-12

0.4-8

0.1-1.5

0.06-1.2

0.05-1
