Brand: QingDao Zhenxiong
Max Power: 3.5KW
Product Details:

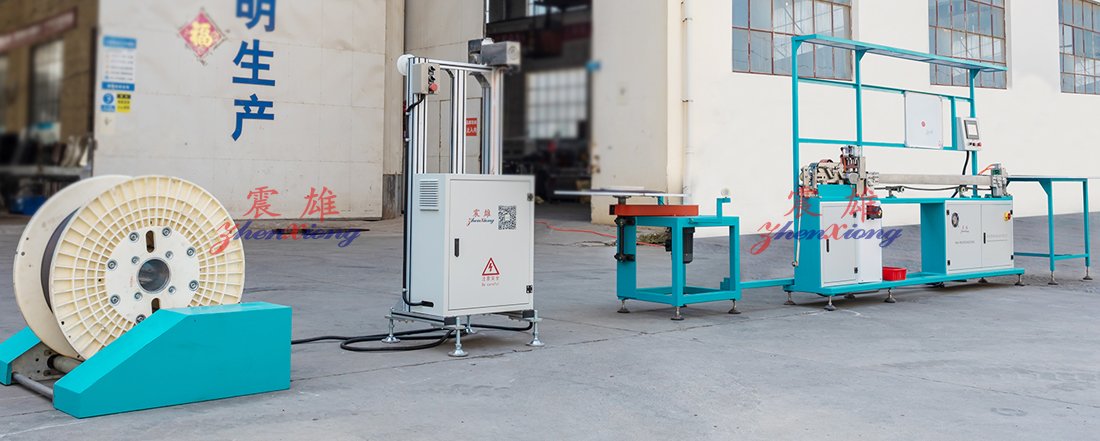

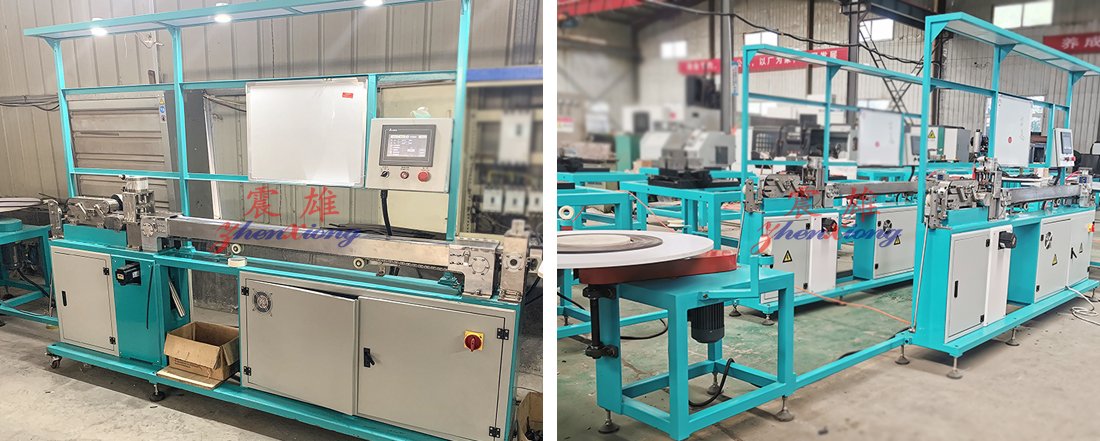

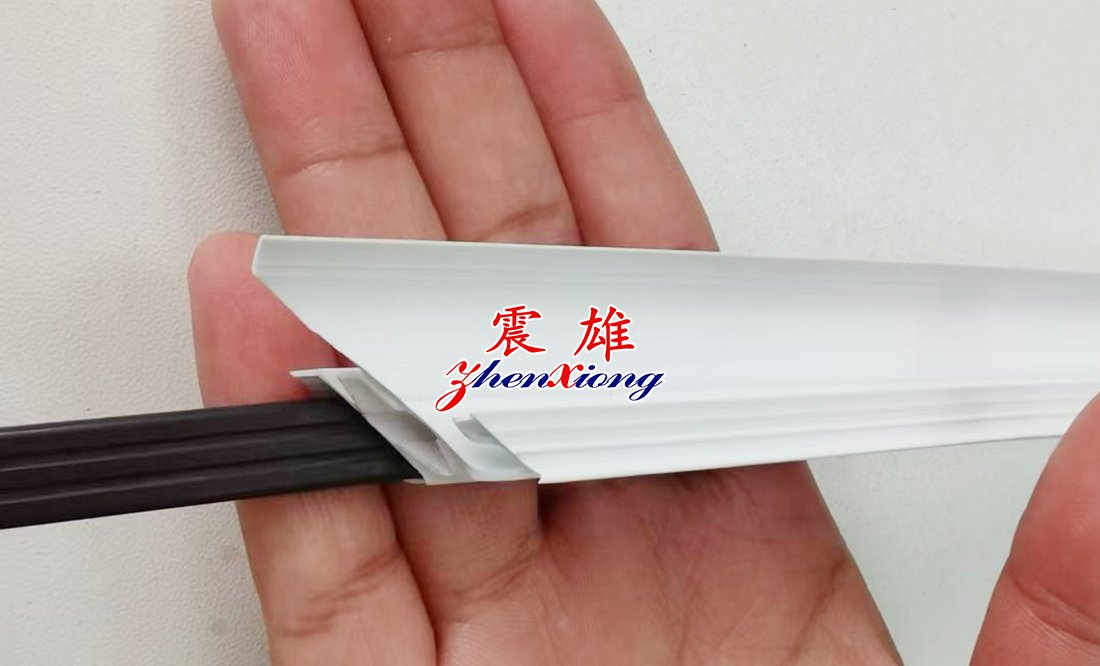

This equipment optimizes foreign advanced conception. It adopts Japan servo control system and PLC parameters inputting. It Cuts 45 degrees at the end of the strip, then insert the strip into the soft PVC gasket. The power is supplied by servo motor and cylinder, The magnetic strip transported from strip spreading machine is inserted into 45 degrees gasket conveniently.
Main Technical parameters
Electrical supply: 380V/50Hz/16A (Designed by the requirement of the client)
Max power: 3.5KW

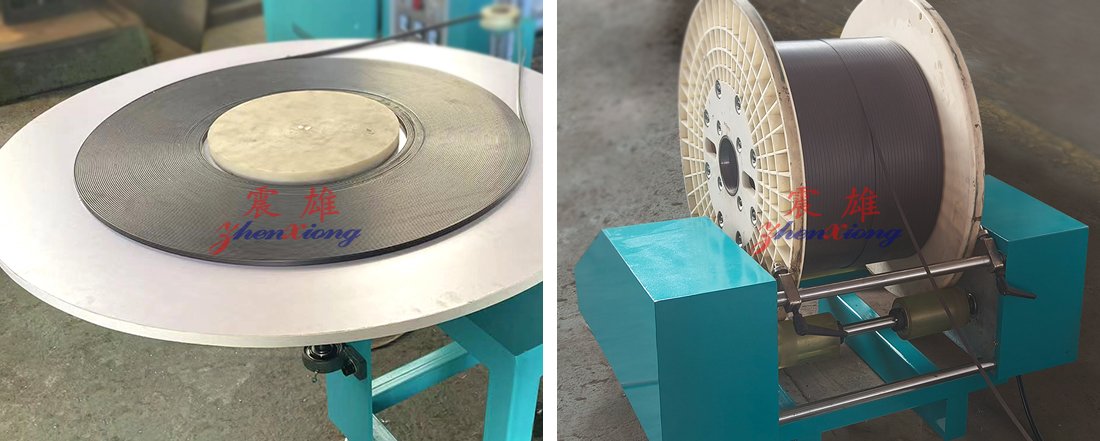

Magnetic strip spreading device dimension:1200×1200×1200mm
Magnetic strip spreading device weight:120Kg
Dimension: 4200×650×1450mm
Total weight: 540Kg
Working table size: 1300×1200×1100mm
Working table weight: 45Kg
Control panel dimension: 500×600×1100mm
