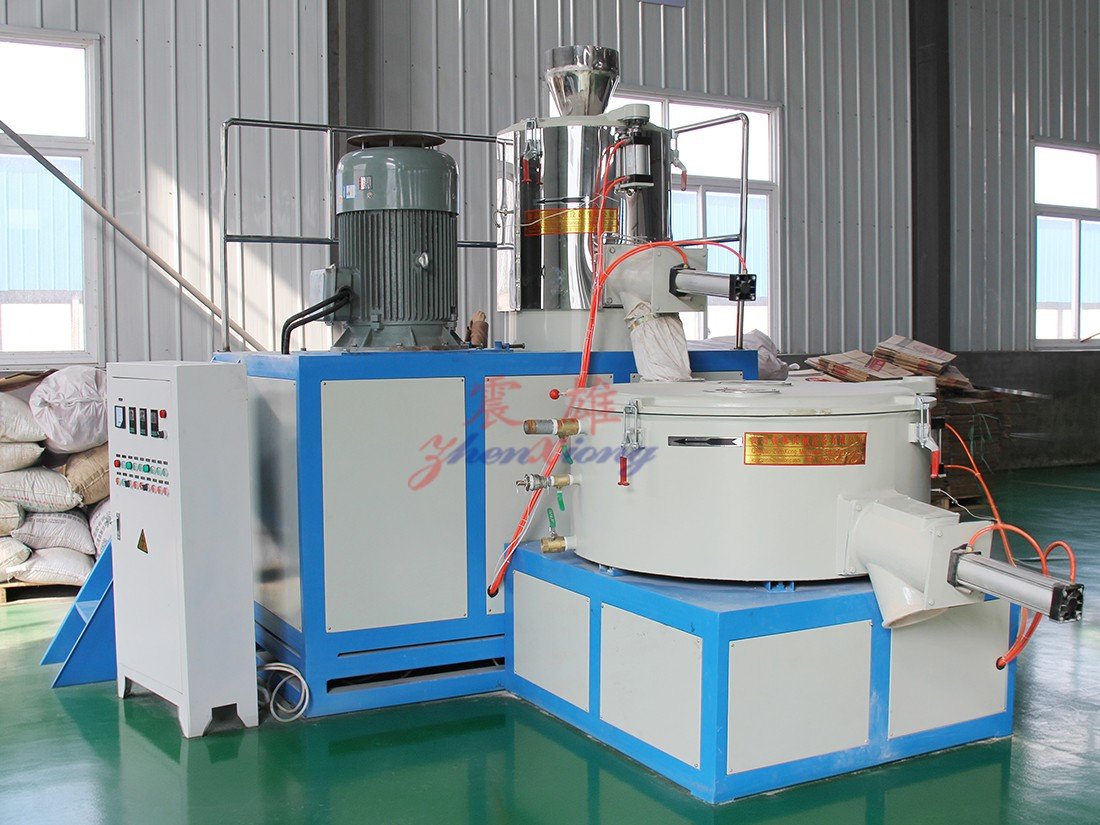

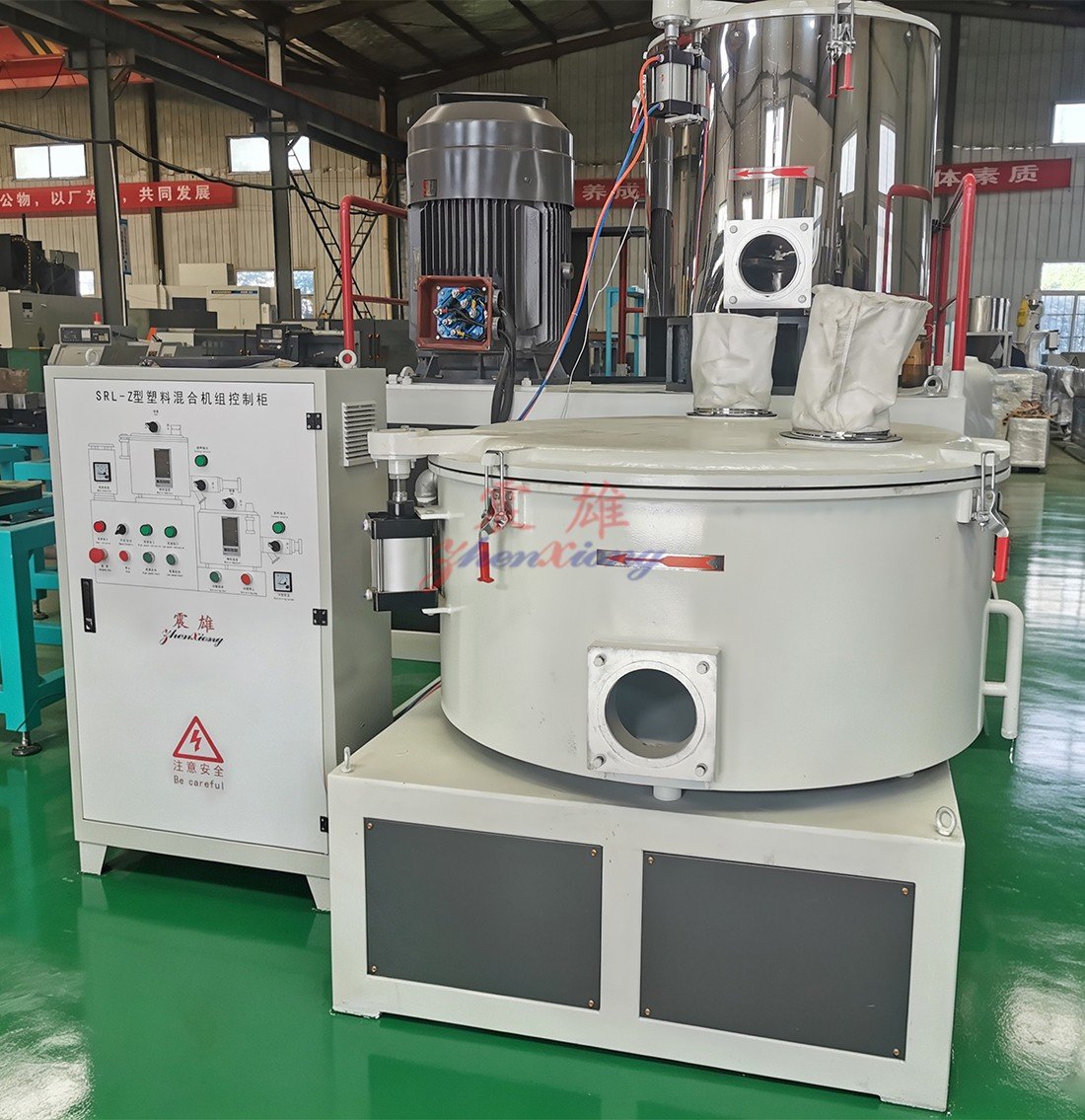

High Efficiency Hot and Cold Mixer

4020a8b3-2653-494b-a11b-9f4835cf4029
High Efficiency Hot and Cold Mixer
High Efficiency Hot and Cold Mixer
High Efficiency Hot and Cold Mixer
High Efficiency Hot and Cold Mixer

High Efficiency Hot and Cold Mixer

Brand: Qingdao Zhenxiong

Product Details:

▶ High efficiency hot and cold mixer




1. One set of SHR500 / SHL1000 hybrid unit


1.1, SHR500 thermal mixing main parameters

Power of motor

55 / 75KW (Dual-speed)

Host speed

430/860(rpm)

Volume

500L

Available capacity

350L

Heating using

Electric heating / Self-friction

Internal wall material

Stainless steel 5mm

Discharge method

Pneumatic

Pneumatic component

Yadke

Contactor

Chint

Temperature controller

Changzhou HuiBang



1.2. SHL1000 cold mixing main parameters

Power of motor

15KW

Bulk volume

1000L

Available capacity

640L

Cooling medium

Running water

Speed m/min

60(rpm)

Internal wall material

Stainless steel

Discharge method

Pneumatic

Pneumatic component

Yadke

Contactor

Chint



2. One set of SHR300 / SHL600 hybrid unit



2.1. SHR300 Hot mixing main parameters

Power of motor

40 / 50KW (Dual-speed)

Host speed

470/950(rpm)

Volume

300L

Available capacity

200L

Heating using

Electric heating / self-friction

Internal wall material

Stainless steel

Discharge method

Pneumatic

Pneumatic component

Yadke

Contactor

Chint

Temperature controller

Changzhou HuiBang



2.2, SHL600 cold mixing main parameters

Power of motor

7.5KW

Bulk volume

600L

Aavailable capacity

400L

Cooling medium

Running water

Speed m/min

60(rpm)

Internal wall material

Stainless steel

Discharge method

Pneumatic

Pneumatic component

Yadke

Contactor

Chint
