Brand: QingDao Zhenxiong

Product Details:




Technical parameters:

Model

ZX-PE63

ZX-PE250

ZX-PE450

ZX-PE630

ZX-PE800

ZX-PE1200

Extruder size

Ø75/33

Ø75/33

Ø90/33

Ø120/33

Ø150/33

Ø150/33

Pipe diameter(r/min)

Ø20-Ø63

Ø75-Ø250

Ø110-Ø450

Ø315-Ø630

Ø315-Ø800

Ø630-Ø1200

Total power(KW)

125

230

380

550

800

1000

Overall size(m)

28 × 4 × 3

40 × 8 × 3

52 × 8 × 36

60 × 10 × 4

70 × 10 × 4

78 × 11 × 4

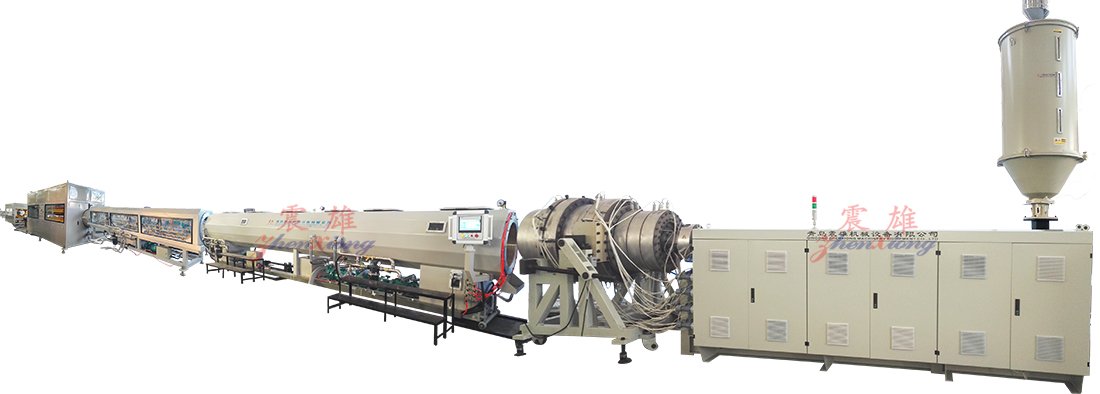

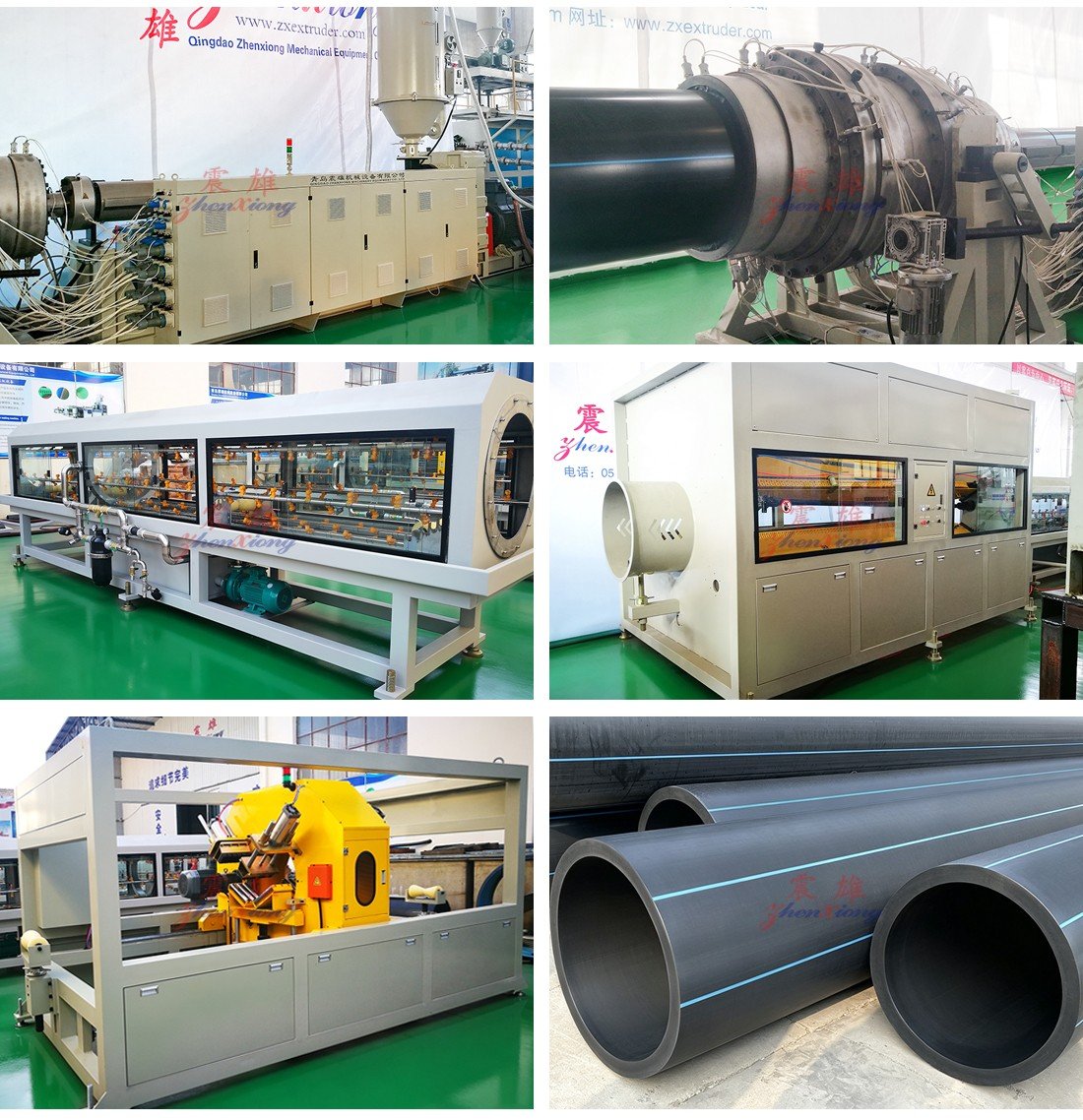

Equipment Composition:

High efficiency single screw extruder: high rotation speed, high capacity and good compounding effect ensures stable extrusion.

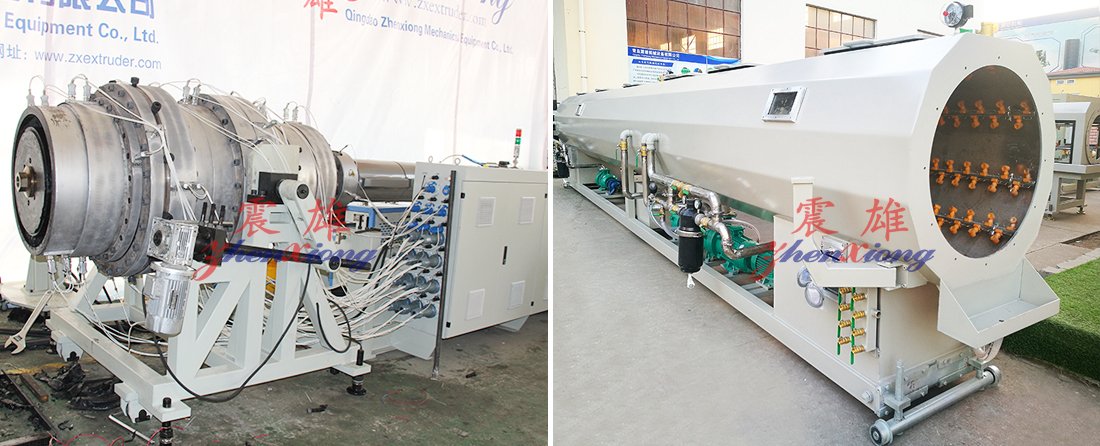

Extruding die: it adopts latest designed die head with spiral distributing flow channel, built-in Temp.control device which make extrusion more evenly and regulution more conveniently.

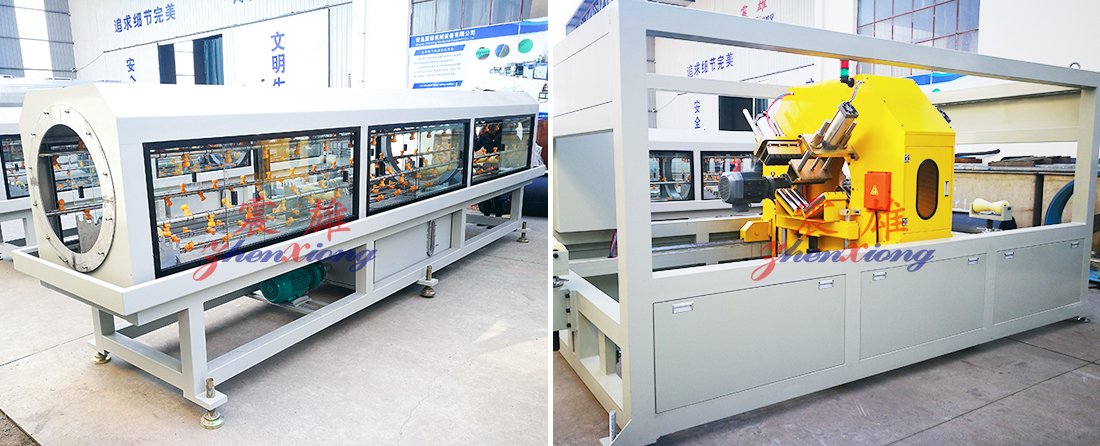

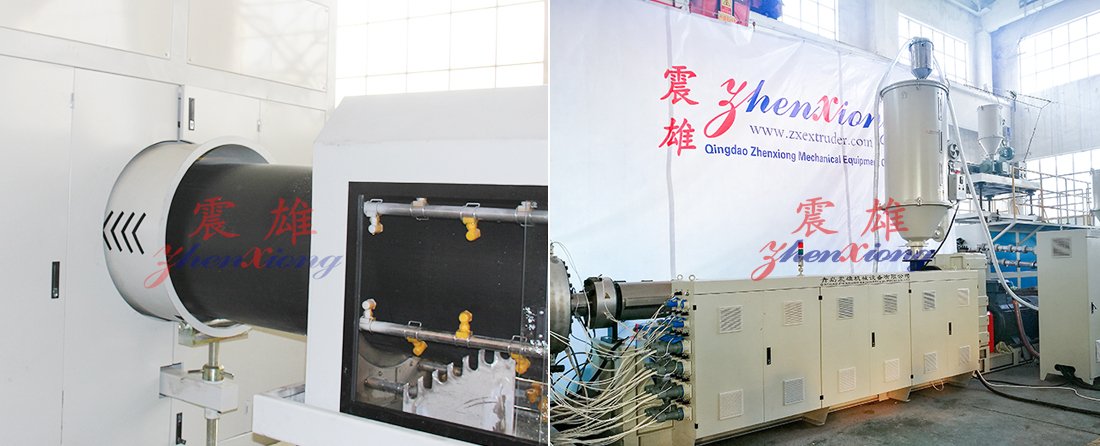

Vacuum calibration and spraying cooling trough: advanced water loop vacuum calibration, equipped with adjusting device for roundness and multi-section 6m spraying water tank, ensure perfect calibration; the body of tank is made of stainless steel.
Haul off unit: can select 2 claw,4 claw,6 claw,8 claw haul off unit to satisfy manufacturing requirements for different pipes.
Cutting unit: base on different reuirements,we can adopt saw cutting,planet saw cutting and chip-free rotary knife cutting etc.
Control system: all kinds of control system is available, such as PLC automatic control system, make operation easily and smoothly.






Application:

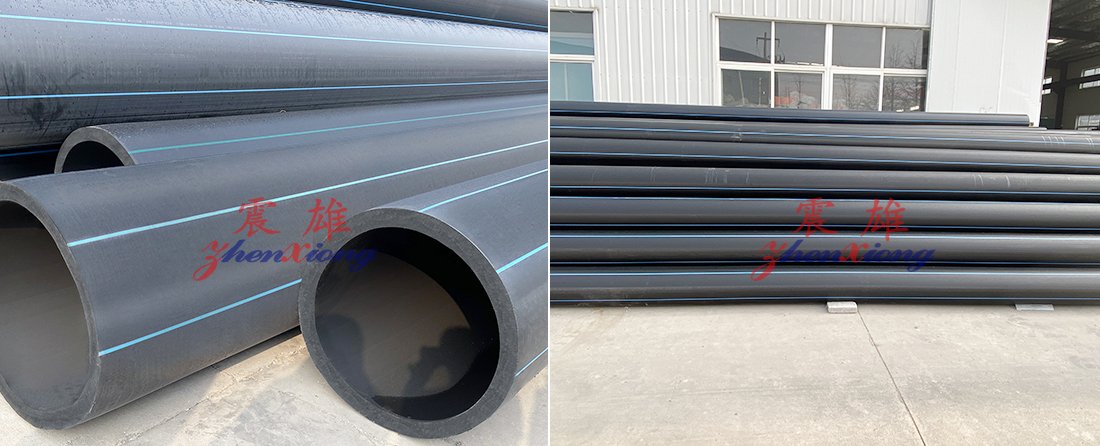

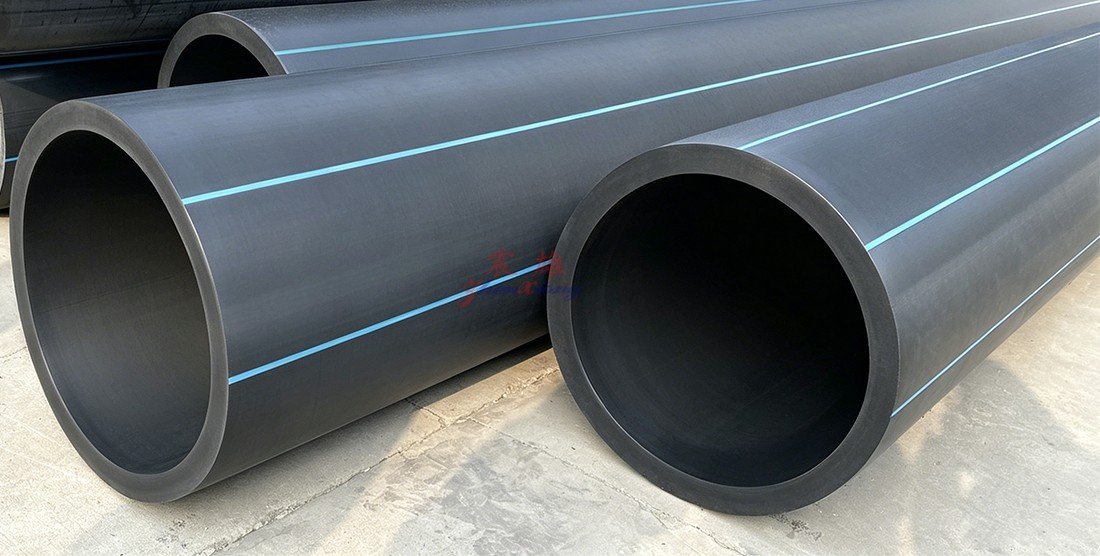

PE, HDPE pipe is mainly used in water draining, nature gas transport.
