Refrigerator Door Gasket Production Line With On-line Magnetic Strip Inserting Device

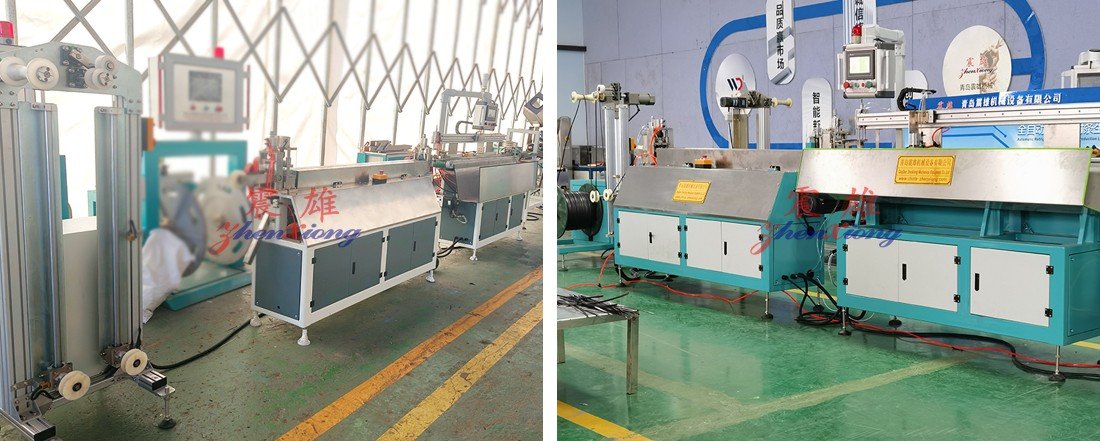

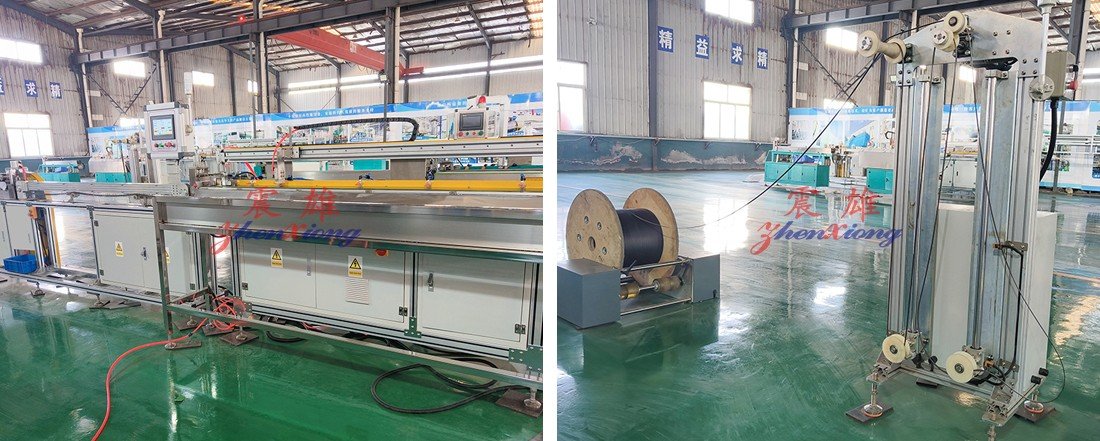

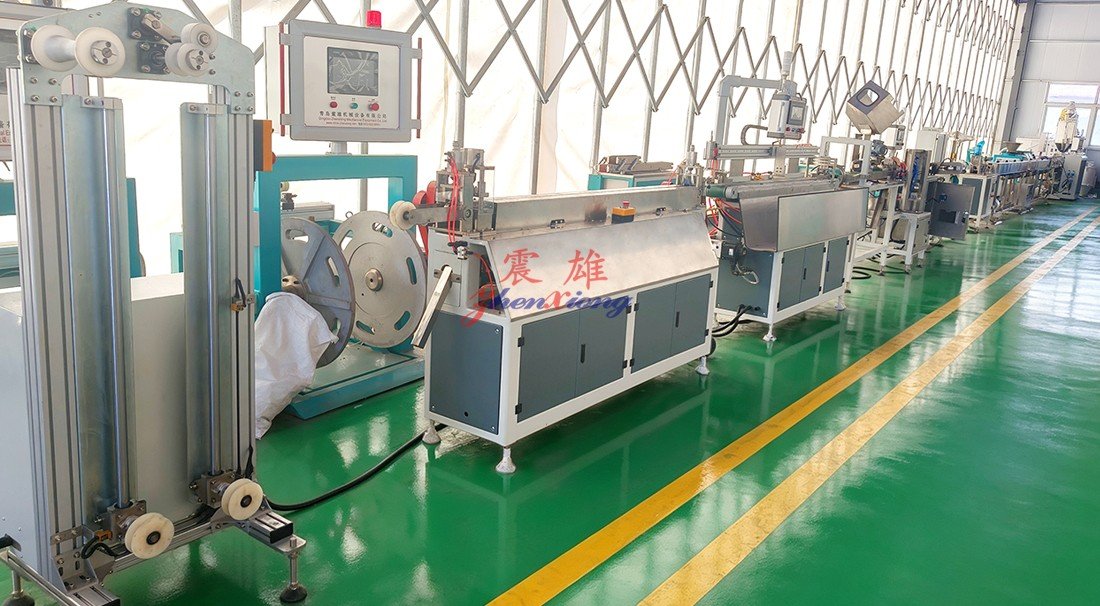

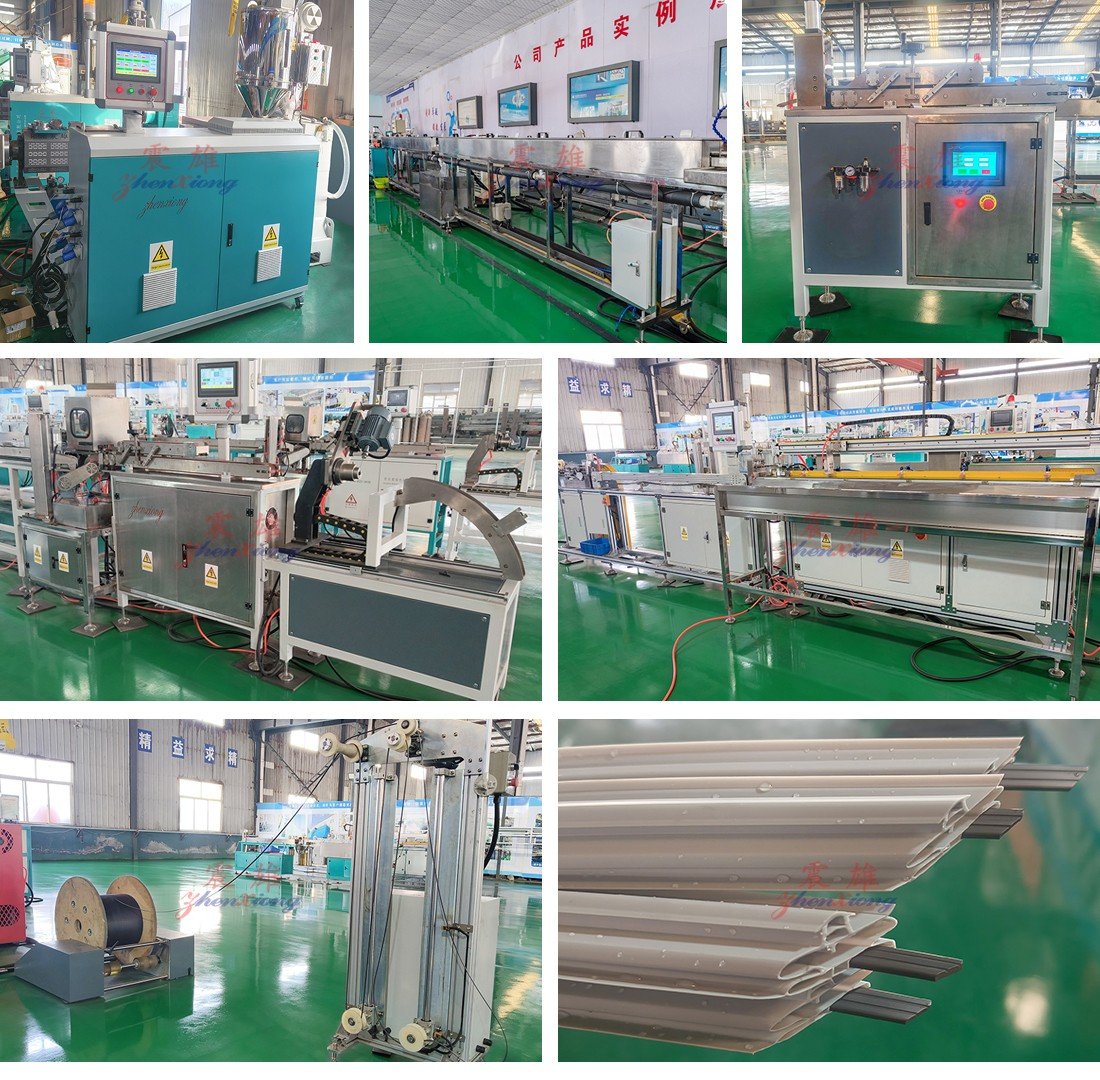

Refrigerator door gasket production line with online magnetic strip inserting machine

Our company is a professional manufacturer of refrigerator door gasket production lines, with over

20 years of production and research and development experience.

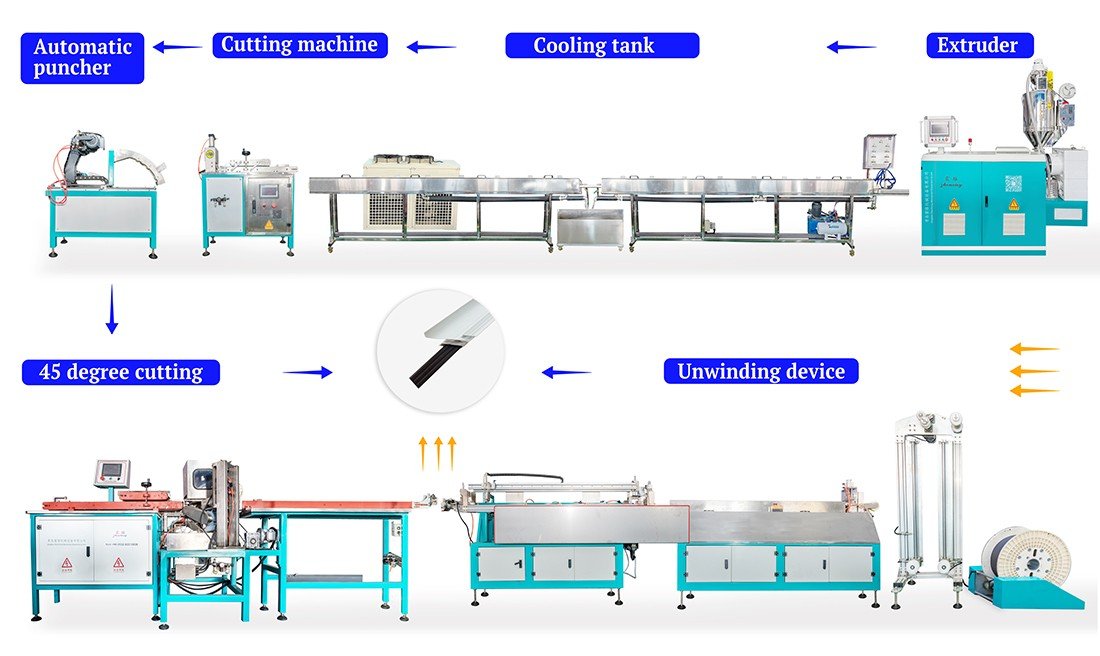

The refrigerator door gasket production line with online magnetic strip inserting machine integrates automatic punching, 45 ° cutting, and online magnetic strip production, achieving online magnetic strip production for door gasket. The entire line is fully automated, requiring only one person to operate, saving labor and greatly improving production efficiency.

Core advantages:

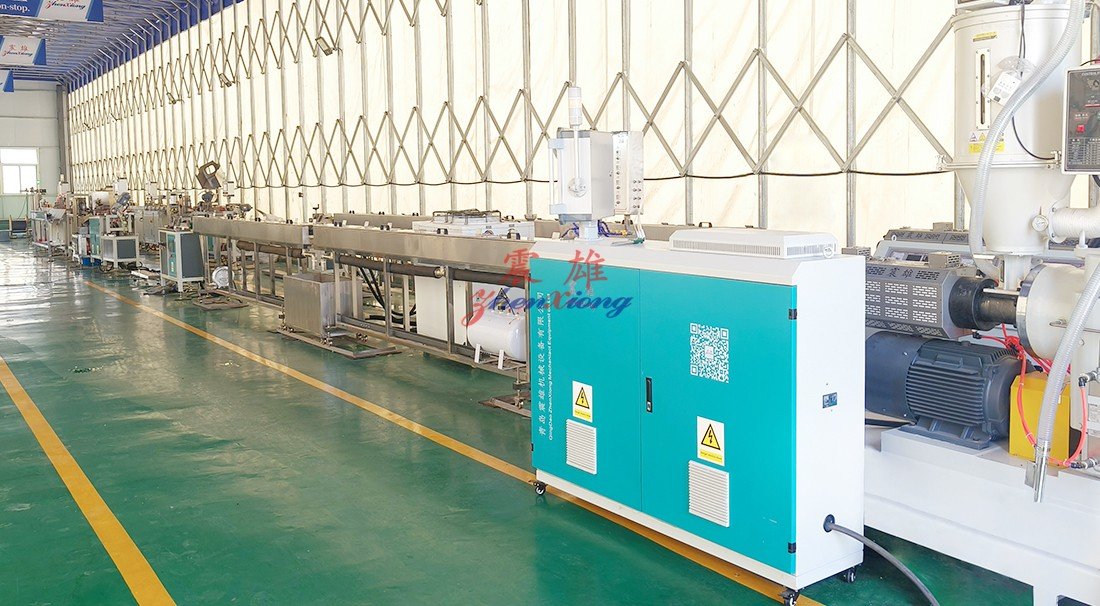

●SJ75 extruder for online magnetic strip refrigerator door gasket production line, equipped with PVC professional separation screw, high production capacity and good material plasticization effect.

●The head mold of online magnetic strip refrigerator door gasket production line is made of 40Cr mold steel, tempered and forged, with high strength, wear resistance and high mold precision.

●The online magnetic strip refrigerator door gasket production line is equipped with a 5P air-cooled chiller, the product is fully and quickly cooled and shaped, and the cooling water temperature can be manually adjusted and controlled as needed.

●The online magnetic strip refrigerator door gasket production line is equipped with an automatic drying feeder, which automatically alarms for overload and lack of material, reducing labor costs;

●The online magnetic strip refrigerator door gasket production line has two cooling water tanks, each section is 4 meters, the cooling water path is long, and circulating water spray cooling is adopted, which is fast and uniform in cooling, and the product shaping effect is good.

●The traction speed of the online magnetic strip refrigerator door gasket production line is controlled by a frequency converter, and it is equipped with a pneumatic cutting device, and the cutting length is adjustable.

●The 45° fully automatic cutting machine of the online magnetic strip refrigerator door gasket production line can cut the two ends of the rubber strip into a 45º angle, with a cutting accuracy of ±1mm.

●The length range of the magnetic strip of the online magnetic strip refrigerator door gasket production line is 180-1800mm, and the accuracy of magnetic insertion is high.

Online magnetic strip refrigerator door seal production line - product application range:

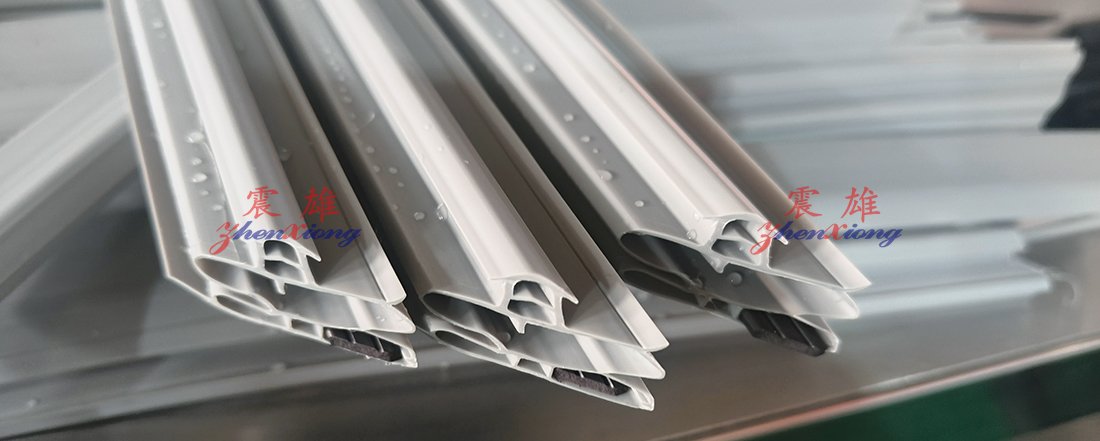

The products produced by the online magnetic strip refrigerator door gasket production line have smooth surface without burrs, strong magnetism, good sealing, high and low temperature resistance, high and low temperature resistance, and long-term use is not easy to age and deform. Widely used in various refrigerators, freezers, water dispensers, beverage cabinets, disinfection cabinets, kitchen utensils, profile doors and windows and various daily products and other industrial products.
