Brand: QingDao Zhenxiong
Model number: ZXSJSZ-65
Application: Pipe
PVC Pipe Production Line
Brand: QingDao Zhenxiong
Model number: ZXSJSZ-65
Application: Pipe
Product Details:
▶ PVC pipe making machine:
1. Conical twin screw extruder
2. Can make two pipe one time
3. Pipe diameter range:16-630mm

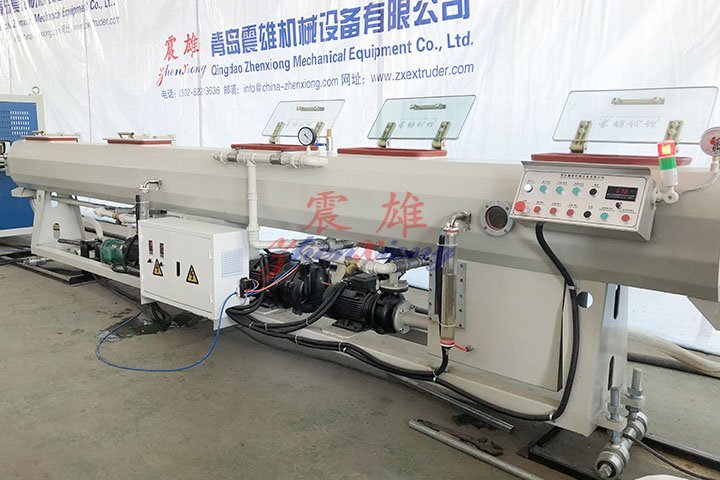

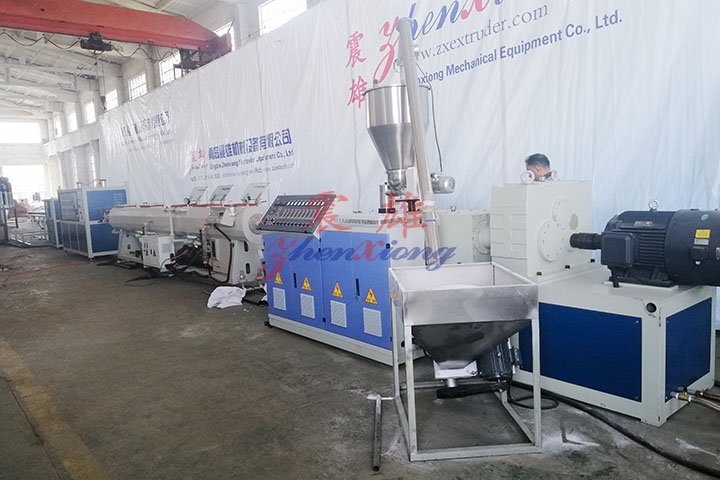

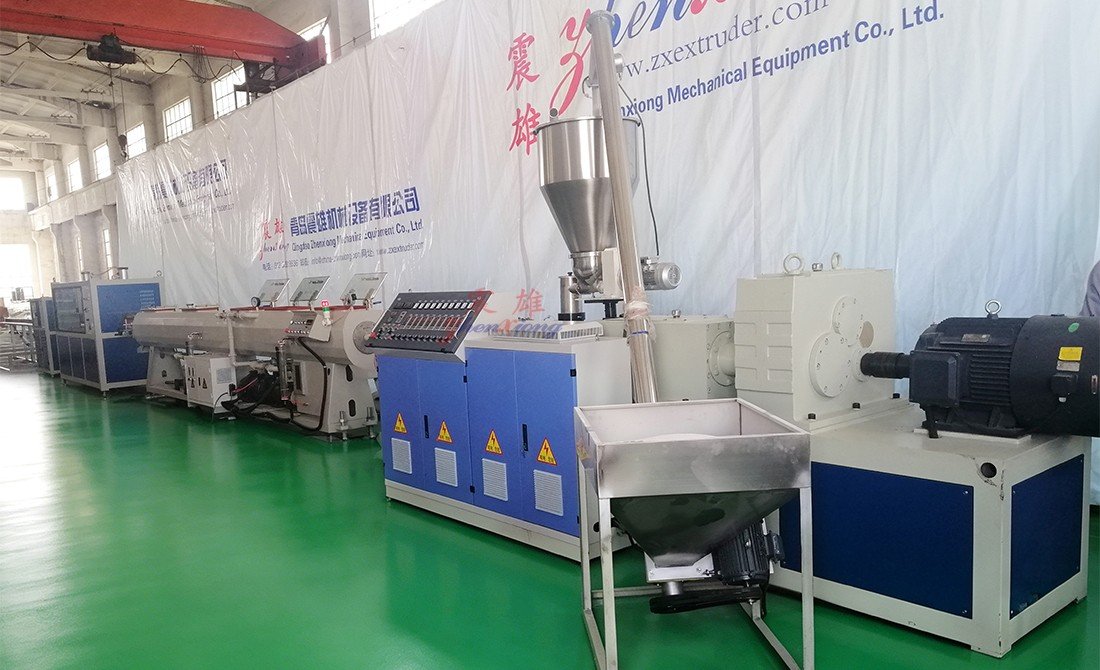

GF series PVC pipe making machine is mainly used in manufacture of the plastic PVC pipe with various tube diameters and walll thickness, wich are used for water supply and drainage in the field of agriculture and contruction.This line is composed of conical twin screw extruder, vacuum calibration table, haul off, cutter ,stacker etc.,
The extruder and the haul off adopt the quality AC freqency conversion control device.The vacuum pump and motor adopt the famous brand,The haul off have two,claw, three-claw, four-claw, six-claw etc.It may choose the saw blade cutting type or the planet cutting type, Meter-measuring and thickness-testing device is optional.The machine groupp have reliable preformance and high production efficiency.Our company may equip the special device for the manufacture of the inner wall spiral coil and core layer blister pipe according to the client's requirement.
PVC pipe process flow:

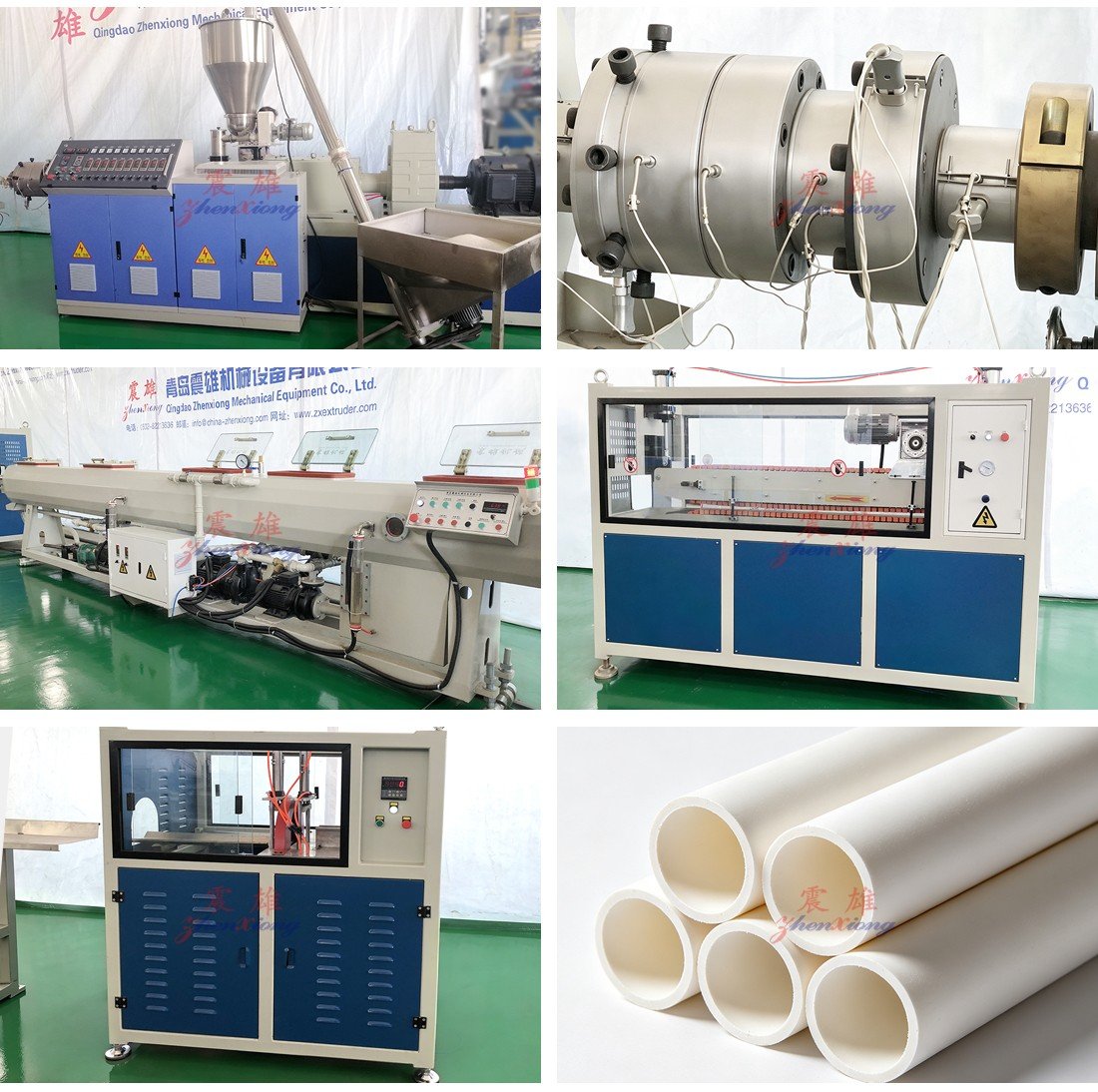

Feeder→Mixer→Feeder→Extruder→Mould→Vacuum tank→Haul-off→Printer→Cutting→Stacker
Characteristics:
Model | SJGF-50 | SJGF-110 | SJGF-160 | SJGF-250 | SJGF-400 | SJGF-630 |
Extruder | SJZ45 | SJZ55 | SJZ65 | SJZ65 | SJZ80 | SJZ92 |
Pipe diameter range | 16-40 | 50-110 | 63-160 | 110-250 | 200-400 | 315-630 |
Calibrator length(mm) | 5000 | 5000 | 5000 | 6000 | 6000 | 6000 |
Haul-off speed(m/min) | 3-12 | 2-8 | 2-8 | 0.4-3 | 0.2-4 | 0.4-3 |
Total power (kw ) | 66 | 62 | 89 | 95 | 135 | 255 |
Total length(mm) | 17000 | 18000 | 20000 | 20500 | 28000 | 30000 |

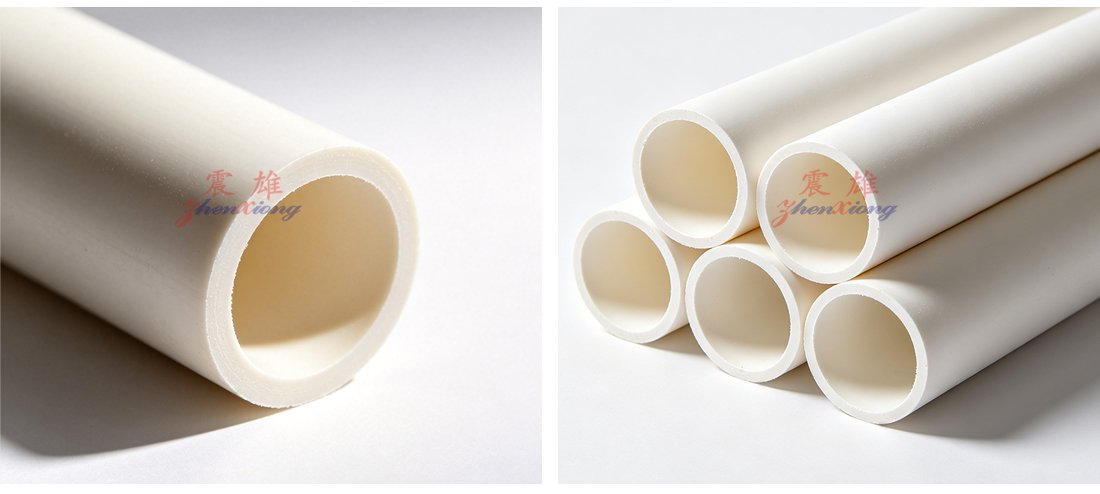

PVC plastic pipe production line is mainly used for producing the plastic PVC pipes with various pipe diameters and wall thickness; the plastic pipes are used for the water supply and drainage of agriculture, the plumbing and drainage of construction, cable laying etc. The lines consists of the conical twin-screw extruder, pipe die head, vacuum calibrating tank, haul-off unit, cutter, stack unit etc. the speed controller of extruder and haul-off unit is foreign DC Speed Regulator or AC inverter, the vacuum pump and the motor adopt the famous brand at home and abroad. The haul-off unit has two caterpillars, three caterpillars, four caterpillars, five caterpillars, six caterpillars, eight two caterpillars and so on. The cutter may be the saw blade cutting or the planet cutting, it is additionally equipped with automatically measuring meter. The advantage of the lines is the reliable performance and high production efficiency.
Equipment Composition:
According to the requirement of the clients, our company can equip some components, then the line can produce the special installation for the manufacture of the (U&PVC) silencing drain pipe with Hollow Wall Inner Spiral-ribbing and the PVC-U pipes with foaming core.
Spiral drain pipe UPVC has a series of advantage, Such as eliminating noise, improving flow, enhancing stiffness and simplifying installation, and widely used in construction drainage, particularly for residence construction.
According to the requirement of the clients, select the double-pipe die head extrusion; it can save energy, reduce the cost of worker and material, increase the production efficiency, and reduce the area of the lines.
Application:
PVC plastic pipe production line is mainly used for producing the plastic PVC pipes with various pipe diameters and wall thickness; the plastic pipes are used for the water supply and drainage of agriculture, the plumbing and drainage of construction, cable laying etc. The lines consists of the conical twin-screw extruder, pipe die head, vacuum calibrating tank, haul-off unit, cutter, stack unit etc. the speed controller of extruder and haul-off unit is foreign DC Speed Regulator or AC inverter, the vacuum pump and the motor adopt the famous brand at home and abroad. The haul-off unit has two caterpillars, three caterpillars, four caterpillars, five caterpillars, six caterpillars, eight two caterpillars and so on. The cutter may be the saw blade cutting or the planet cutting, it is additionally equipped with automatically measuring meter. The advantage of the lines is the reliable performance and high production efficiency.
